Datasheet
Welcome Custom

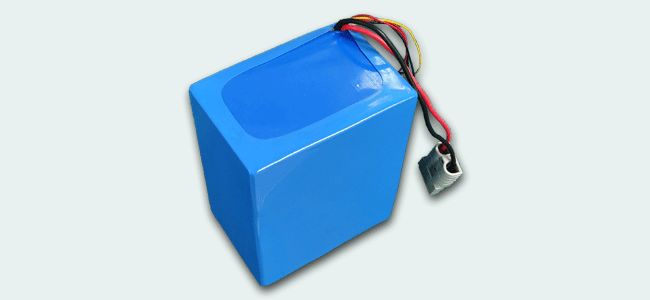

Item | 7S20Ah-PC01-A | ||
BMS | with Smart BMS | ||
Nominal Voltage | 24V | ||
Nominal Capacity | 20Ah | ||
Charge Current | ≤20A | ||
Discharge Current | ≤40A | ||
Instantaneous Discharge Current | 60A | ||
Internal Resistance | ≤60mΩ | ||
Life Cycle | ≥ 800 cycles | ||
Communication | CAN | ||
Weight | 3Kg±0.5Kg | ||
Dimension | L170mm*W142mm*H105 |

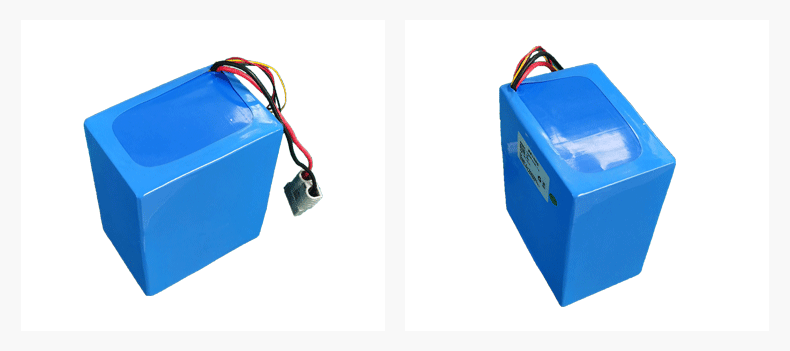

Our Product
Our Advantage
Customized lithium ion battery
Grade A cells, with real capacity
Sustainable charging current can be reached 1C
With built-in smart BMS to monitor battery status and protect battery in real time
