Datasheet
Welcome Custom

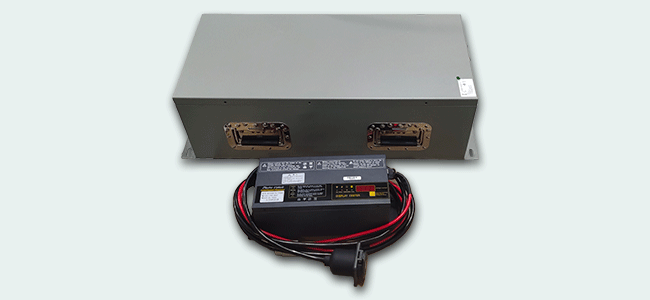

Item | 15S200Ah-PC01-A | ||
BMS | with Smart BMS | ||
Nominal Voltage | 48V | ||
Nominal Capacity | 200Ah | ||
Charge Current | ≤100A | ||
Discharge Current | ≤150A | ||
Internal Resistance | ≤40mΩ | ||
Life Cycle | ≥ 2000 cycles | ||
Communication | RS485&RS232 | ||
Weight | 95.0Kg±5.0Kg | ||
Dimension | L800mm*W350mm*H230 |
Our Product
Our Advantage

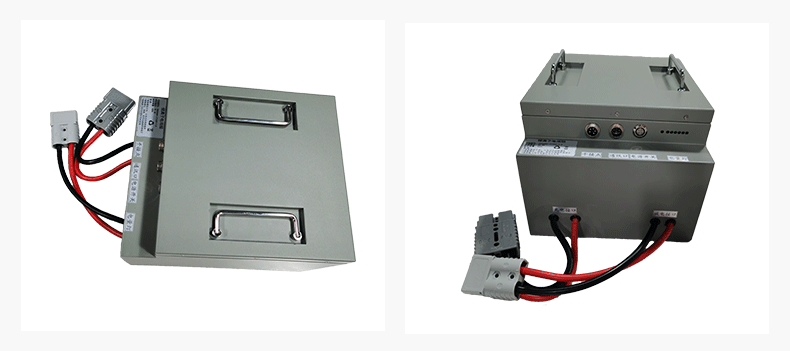

Customized lithium ion battery
Grade A cells, with real capacity
Sustainable charging current can be reached 1C
With built-in smart BMS to monitor battery status and protect battery in real time
