Datasheet
Welcome Custom
Item | 15S86Ah-PC01-A | ||
BMS | with Smart BMS | ||
Nominal Voltage | 48V | ||
Nominal Capacity | 86Ah | ||
Charge Current | ≤50A | ||
Discharge Current | ≤80A | ||
Internal Resistance | ≤100mΩ | ||
Life Cycle | ≥ 2000 cycles | ||
Communication | RS485&RS232 | ||
Weight | 50Kg±3Kg | ||
Dimension | L835mm*W250mm*H180mm |
Our Product
Our Advantage

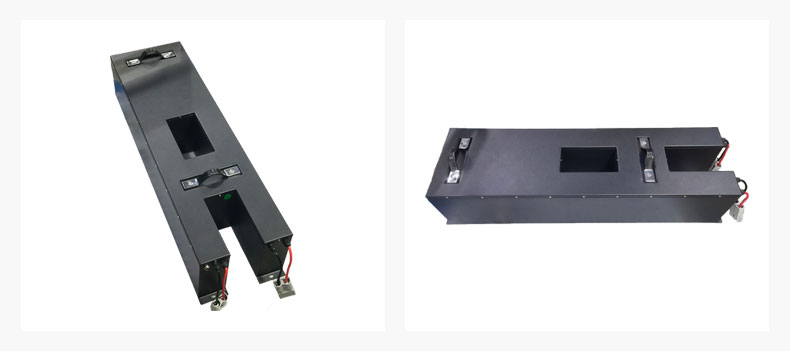

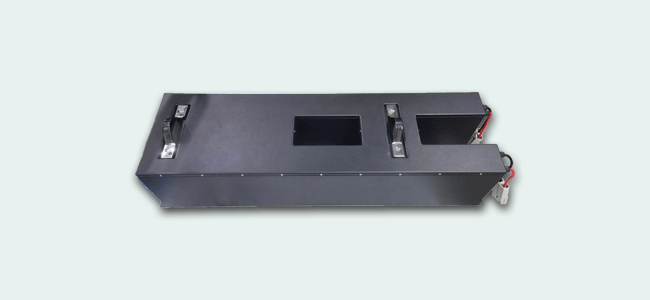

Customized lithium ion battery
Grade A cells, with real capacity
Sustainable charging current can be reached 1C
With built-in smart BMS to monitor battery status and protect battery in real time
