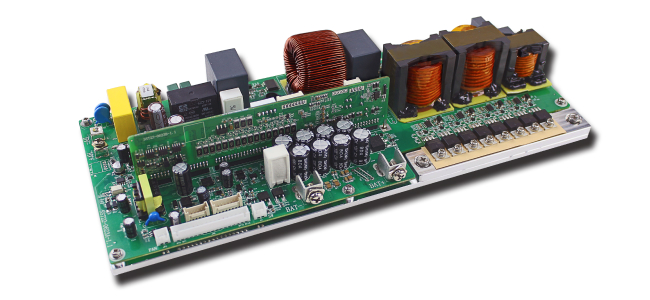

Household Energy BMS-High Voltage

Function Features

1. Mixed use of new and old batteries

2. Support multi cluster parallel

3. Support automatic encoding

4. Safe and reliable operation and protection strategies

5. High efficiency

6. High integration

7. Highly configurable

Specification model	String series PW-PC20623
Working voltage	48V rise to 330V-465V
Protection function	Over charging, over discharging, over current, high/low temperature protection, equalization, fault detection, anti reverse connectionprotection
Acquisition accuracy	Voltage tolerance: ±10mV; Current tolerance: ±1%@FS; Temperature tolerance: ±2℃.
Calculation accuracy	SOC	5%
	SOH	5%
Communication	RS485/CAN Isolation commnication	Adapting to inverters from different manufacturers
	CAN parallel communication/isolated communication	Supports a maximum of 16 batteries in parallel
